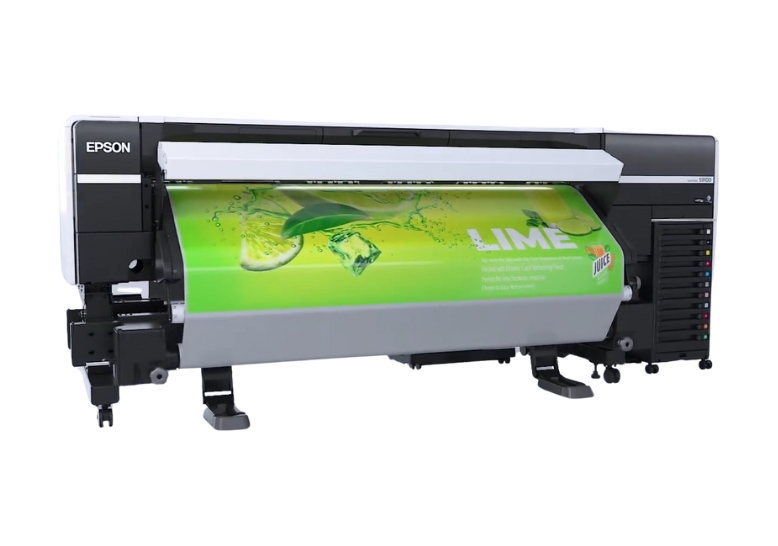

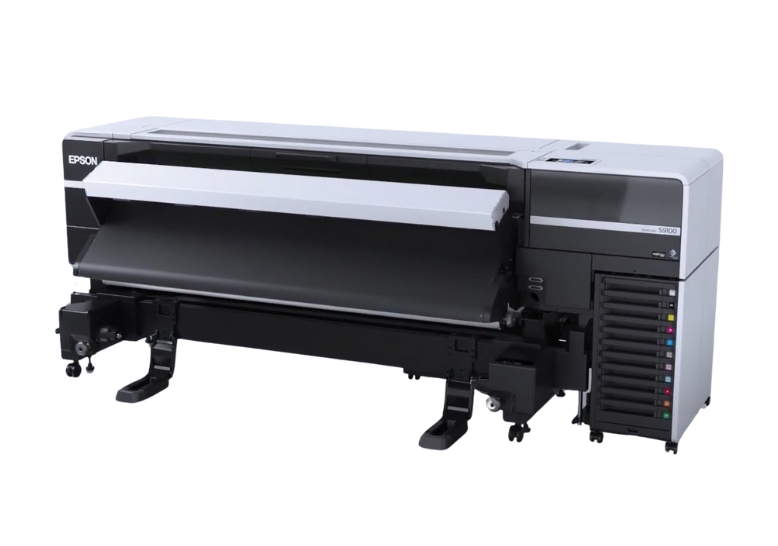

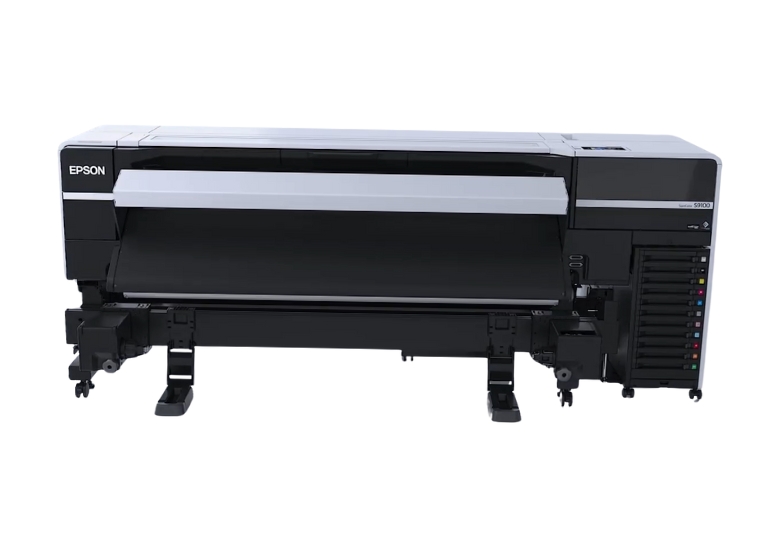

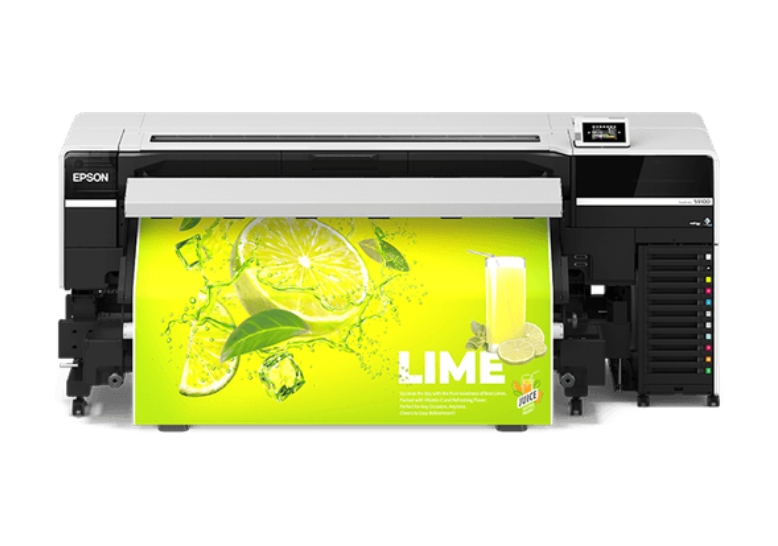

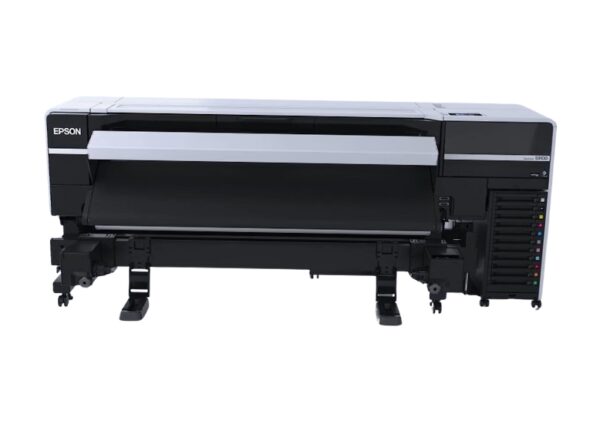

EPSON SureColor SC-S9130
EPSON SureColor SC-S9130 - Image 2
EPSON SureColor SC-S9130 - Image 3
EPSON SureColor SC-S9130 - Image 4

EPSON SureColor SC-S9130

Descriptions:

Printer: 64 inches (Printable width) (Roll form materials)

Ink: 11 (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange, Red, Green, White)

Speed: 216 ft²/hr (20.1 m²/hr) – Standard (6-pass)

Usage: Indoor & Outdoor Printing

Category:

Print
Printing modes
1285 ft²/hr (119.4 m²/hr) – Max Speed (1 pass, 300 x 300 dpi)
383 ft²/hr (35.6 m²/hr) – High Speed (4 pass, 600 x 600 dpi)
216 ft²/hr (20.1 m²/hr) – Standard (6 pass, 600 x 600 dpi)
151 ft²/hr (14.0 m²/hr) – Quality (10 pass, 1200 x 600 dpi)
78 ft²/hr (7.2 m²/hr) – High Quality (17 pass, 1200 x 600 dpi)

Note: Exact ft²/hr rates for specific white ink or layered printing (e.g., White Spot, 3/5 layers) are not consistently published by Epson in this detailed format.

Print resolution – Up to 1200 x 1200 dpi
Ink types – UltraChrome GS3 eco-solvent ink
Ink cartridges – 11 (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange, Red, Green, White or Cleaning)
Cartridge size – 800 ml or 1500 ml ink packs
Printheads – PrecisionCore MicroTFP printhead (9,600 nozzles: 400 nozzles/row × 2 rows/color × 10 colors + 400 nozzles/row × 4 rows/color × 1 color for white/cleaning)

Media
Handling – Roll feed (friction feed), Media Lifter for easy loading
Media types – PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non-porous), canvas, and more
Rigid media size – Not Applicable (primarily a roll-to-roll printer)
Roll size – 11.8 to 64 in (300 to 1625.6 mm)
Roll weight – Up to 99.2 lb (Up to 45 kg)
Roll diameter – Up to 9.8 in (Up to 250 mm)
Thickness – Up to 0.04 in (Less than 1 mm)

Applications
Signage: indoor, outdoor, banners, vehicle wraps, window graphics, backlit displays, point-of-sale; Decoration: wall coverings, fine art prints; Textile: soft signage (non-porous)

Connectivity
Interfaces – SuperSpeed USB, Gigabit Ethernet (100BASE-TX/1000BASE-T)

Dimensions (W x D x H)
Printer – 103.1 x 36.4 x 40.2 in (2620 x 925 x 1021 mm)
Shipping – Not Consistently Published
Operating area – Not explicitly defined in this metric for roll-to-roll

Weight
Printer – 754.2 lb (342 kg) (without ink cartridges)
Shipping – Not Consistently Published

Environmental ranges
Operating temperature – 15 to 30ºC
Operating humidity – 20 to 70% RH (non-condensing)

Power
Consumption – AC 100-120 V or 200-240 V 50/60 Hz (Specific kW consumption for printing/ready modes not consistently published in public spec sheets)
