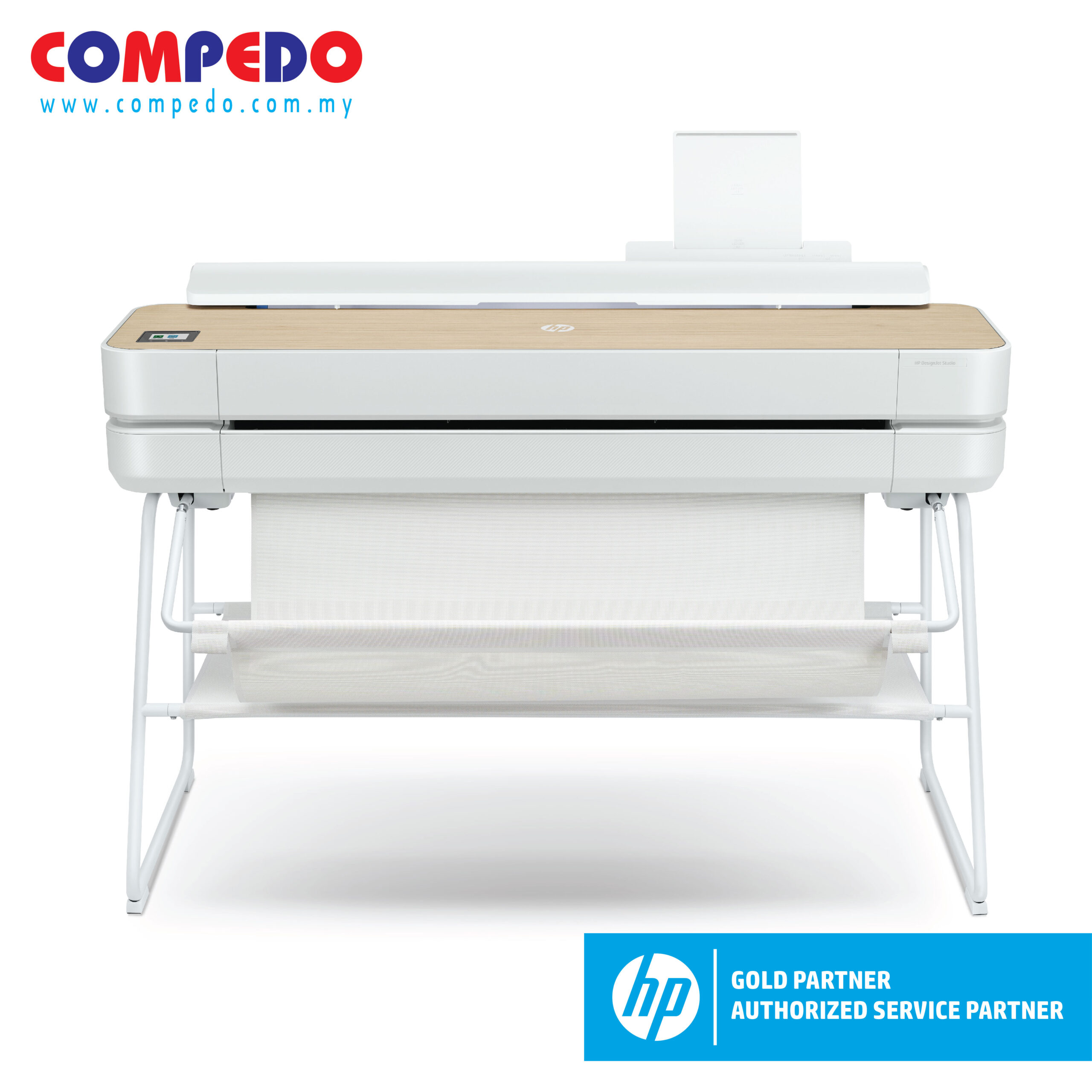

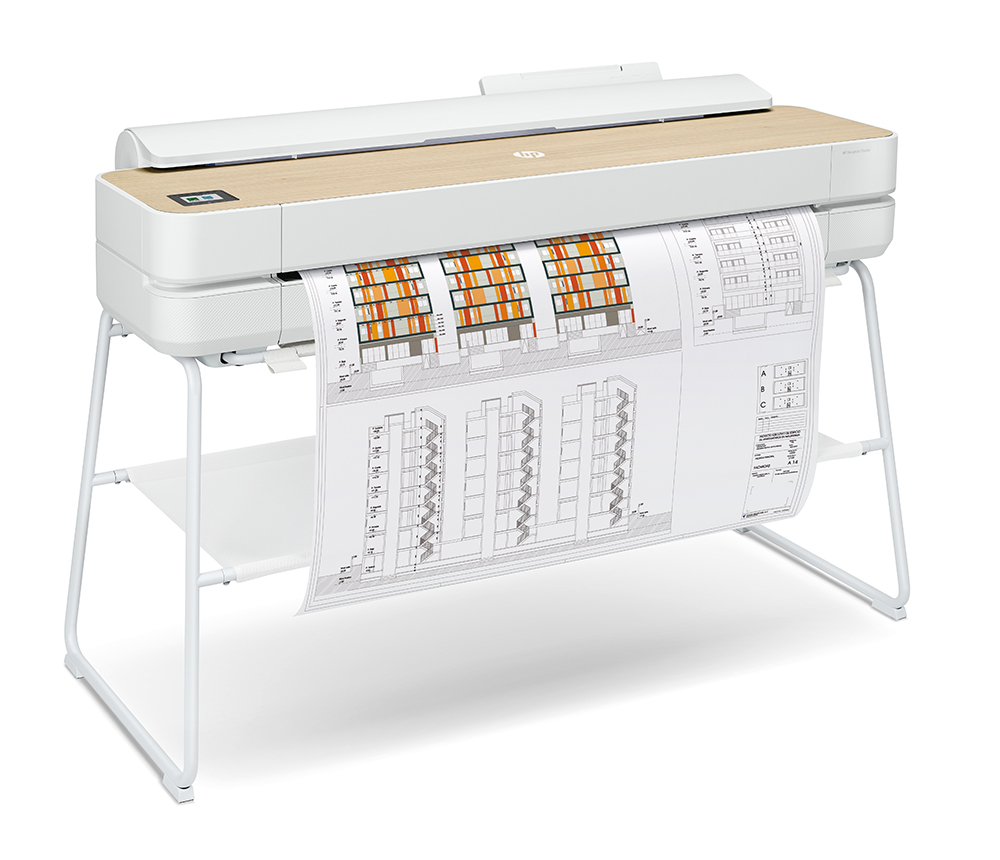

HP Designjet Studio Wood 36-in Printer (NEW)

RM11,000.00

  • 25 sec/page on A1, 82 A1 prints per hour
  • Up to 2400 x 1200 optimized dpi
  • 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines
  • Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

1 in stock (can be backordered)

SKU: 5HB14A Category:

Print

Print speed – 25 sec/page on D, 82 D prints per hour
Print resolution – Up to 2400 x 1200 optimized dpi
Technology – HP Thermal Inkjet
Margins – Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm), Sheet: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Ink types – Dye-based (C, M, Y); pigment-based (K)
Page Yield – 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines
Ink drop – 5.5 pl (C, M, Y); 12 pl (K)
Printheads – 1 (cyan, magenta, yellow, black)
Printhead nozzles – 1376
Line accuracy – ±0.1%
Minimum line width – 0.0008 in (0.02 mm)
Max optical density – 8 L* min/2.10 D

Media

Handling – Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Roll size – 11 to 36 in (279 to 914 mm)
Sheet size – Auto sheet feeder: 8.3 x 11 to 13 x 19 in, manual feed: 8.3 x 11 to 36 x 74.7 in
Standard sheets – Auto sheet feeder: A, B, manual feed: A, B, C, D, E
Grammage – 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Thickness – Up to 11.8 mil

Applications

Line drawings; Presentations; Renderings

Memory

1 GB

Hard disk

None

Connectivity

Interfaces – Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11
Print languages (standard) – HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Drivers – Raster driver for Windows and macOS

Dimensions (W x D x H)

Printer – 51.9 x 21.9 x 36.7 in (1317 x 555 x 932 mm)
Shipping – 57.9 x 22.6 x 25.4 in (1470 x 575 x 646 mm)

Weight

Printer – 91.9 lb (41.7 kg)
Shipping – 136.7 lb (62 kg)

Power

Consumption – <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Requirements – Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
