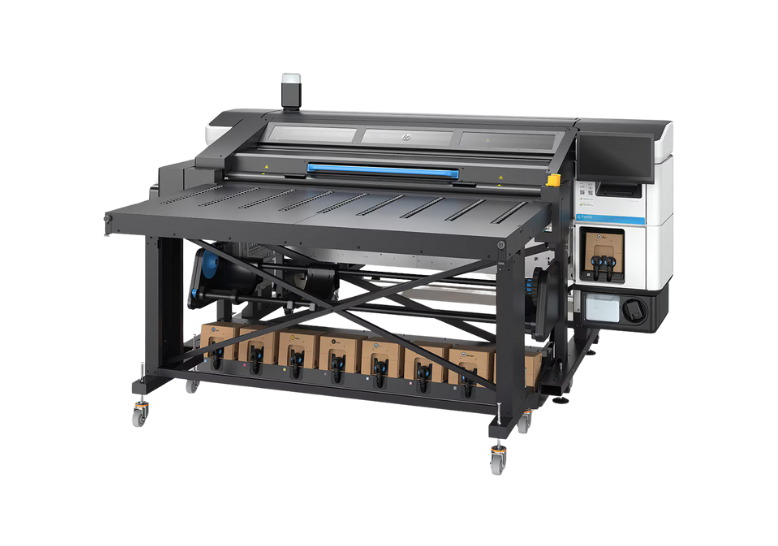

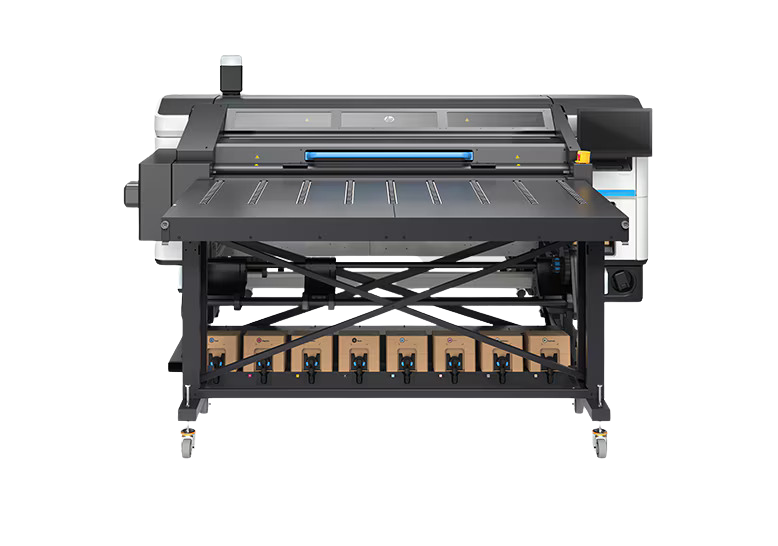

HP Latex R530 Printer

Print
Printing modes
334 ft²/hr (31 m²/hr) – Draft (4 pass)
258 ft²/hr (24 m²/hr) – Fast (6 pass)
167 ft²/hr (15.5 m²/hr) – Standard (12-pass)
124 ft²/hr (11.5 m²/hr) – Quality (16-pass)
99 ft²/hr (9.2 m²/hr) – White Spot (100%)
67 ft²/hr (6.2 m²/hr) – White Overflood (100%)
45 ft²/hr (4.2 m²/hr) – White Underflood (100%)
33 ft²/hr (3.1 m²/hr) – White Underflood (160%)
22 ft²/hr (2.1 m²/hr) – 3 layers
14 ft²/hr (1.3 m²/hr) – 5 layers

Print resolution – Up to 1200 x 600 dpi
Ink types – Water-based HP Latex Inks
Ink cartridges – 9 (black, cyan, light cyan, light magenta, magenta, yellow, white, HP Latex Optimizer, HP Latex Overcoat)
Cartridge size – 3 L per cartridge
Printheads – 10 (2 cyan/black, 2 magenta/yellow, 2 light cyan/light magenta, 2 white, 1 HP Latex Optimizer, 1 HP Latex Overcoat)

Media

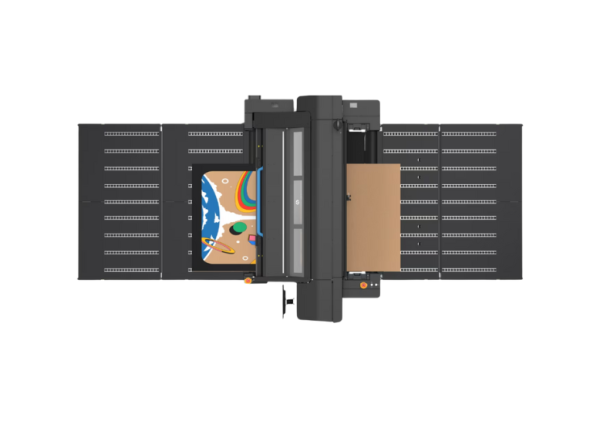

Handling – Flatbed, sheet feed, roll feed, vacuum belt media drive for easy loading and accurate media advance
Media types – Rigid substrates: paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate, polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminum composite panel, wood, glass, ceramic; Roll substrates: PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non porous), canvas, leather
Rigid media size – 11.7 x 16.5 in to 63.6 x 60 in (297 x 419 mm to 1615 x 1524 mm) up to 63.6 x 236 in (1615 x 6000 mm) with two sets of optional extension tables
Roll size – 18 to 64 in (457 mm to 1625 mm)
Roll weight – Up to 121 lb (Up to 55 kg)
Roll diameter – Up to 9.8 in (Up to 250 mm)
Thickness – Up to 2 in (50.8 mm)

Applications
Signage: indoor, flat, backlit, thermoformed; Decoration: wall coverings, window decoration; Vehicle decoration: fleet graphics, wraps, decals; Textile: soft signage, frontlit, backlit; POS and Packaging: corrugated displays, short-run customized packaging, prototyping

Connectivity
Interfaces – Gigabit Ethernet (1000Base-T)

Dimensions (W x D x H)
Printer – 103.5 x 68.1 x 60.9 in (262.89 x 172.97 x 154.68 cm) (without tables); 103.5 x 126 x 60.9 in (262.89 x 320.04 x 154.68 cm) (with tables)
Shipping – 115.4 x 87.6 x 69.1 in (293.3 x 2226 x 175.6 cm)
Operating area – Rigid printing: 185 x 170.5 in (4.69 x 4.33 m); Flexible only: 48 x 170.5 in (3.76 x 4.33 m)

Weight
Printer – 1455 lb (660 kg) (without tables)
Shipping – 2769 lb (1256 kg)

Environmental ranges
Operating temperature – 15 to 30ºC
Operating humidity – 20 to 70% RH (non-condensing)

Power
Consumption – 2.5-4 kW (5 kW peak) (printing), 130 W (ready)
