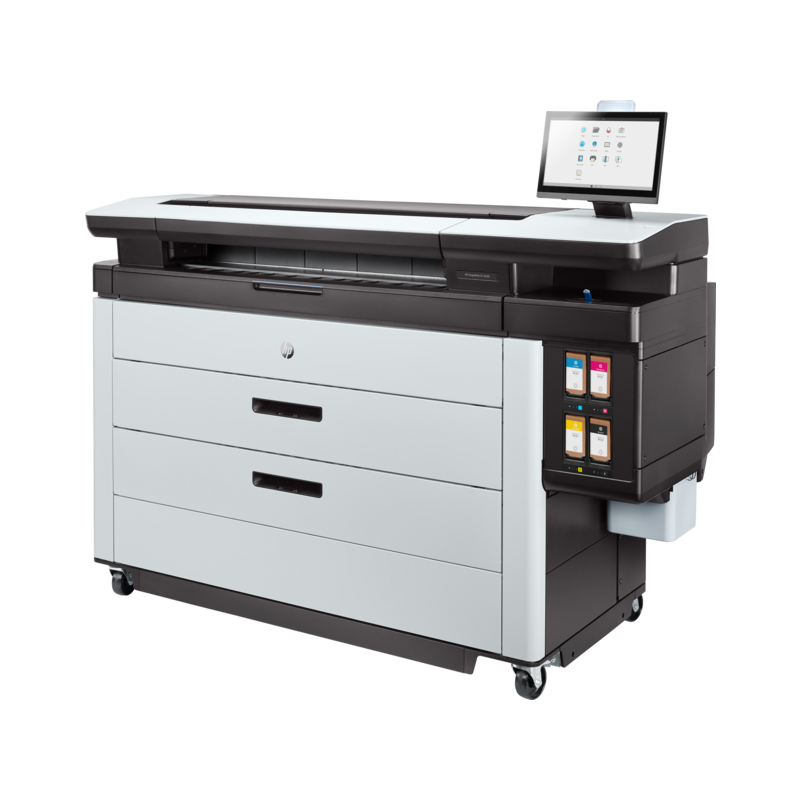

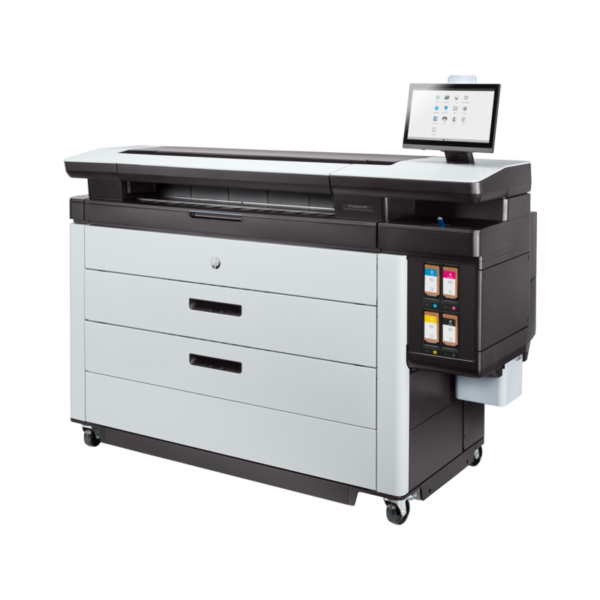

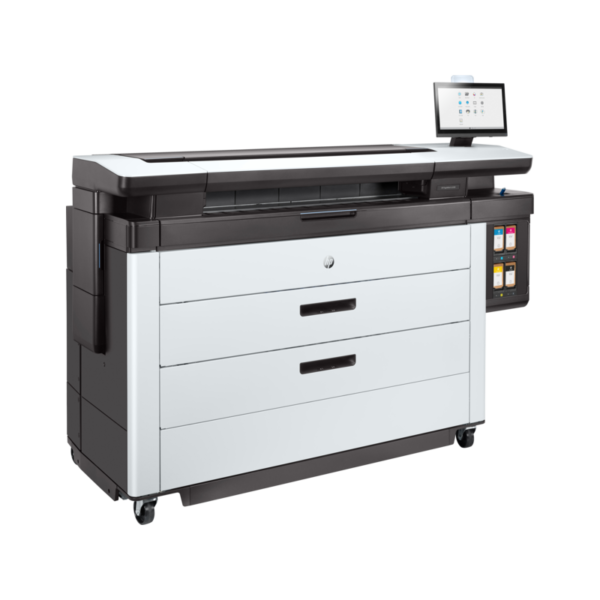

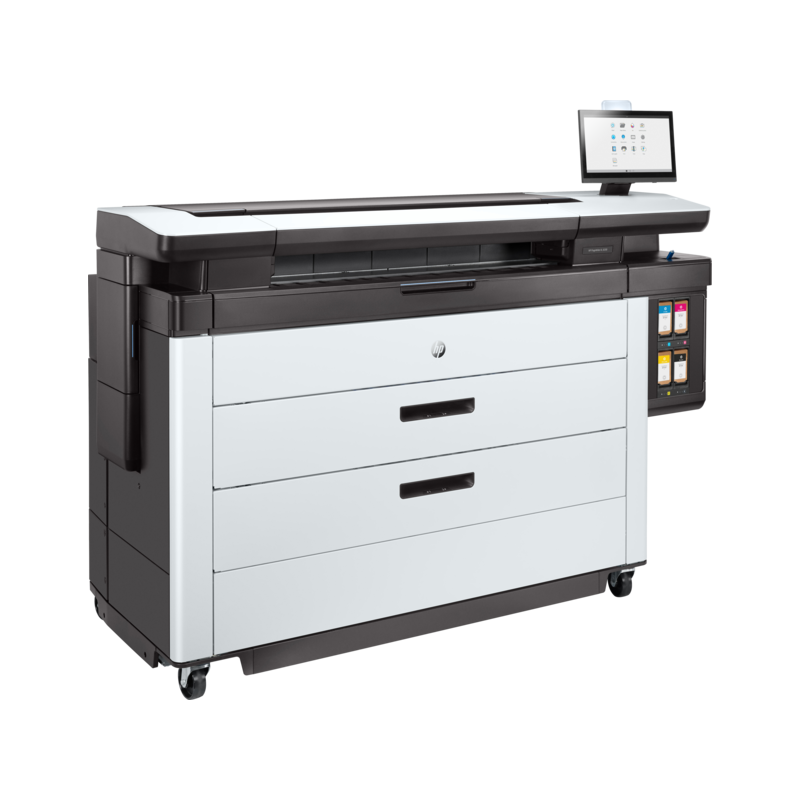

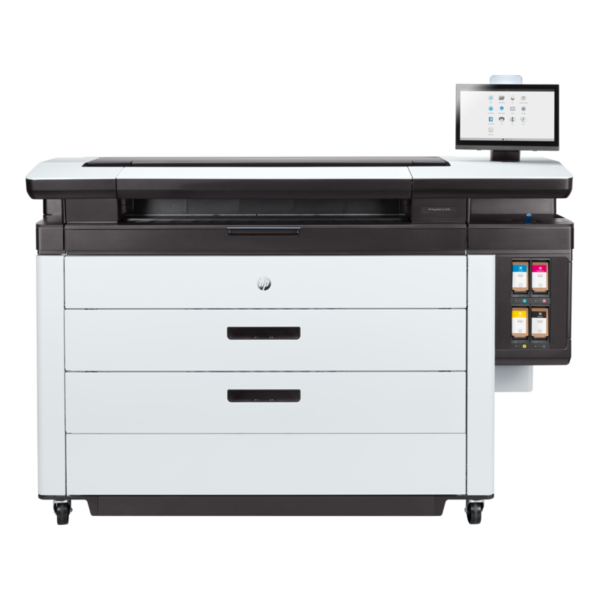

HP PageWide XL 8200 Printer

RM300,000.00

Machine Specification:-

  • A1 – 30 pages/min, 1500 pages/min
  • High Capacity Stacker
  • Up to 3 drawers and 6 rolls 200m plain paper material
  • HP Smart Stream Software
  • The machine comes with Adobe PostScript Driver

Available on backorder

SKU: 4VW18B Category:

General
Technology – HP PageWide Technology
Applications – Line drawings, Maps, Orthophotos, Posters
Ink types – Pigment-based (cyan, magenta, yellow, black)
Ink cartridges – 4 (1Litre per color)
Printheads – 8 x HP 841 PageWide XL Printheads
Average printhead life – 32 liters
Printhead warranty – 10 liters or 12 months from installation
Print resolution – 1200 x 1200 dpi
Minimum line width – 0.02 mm (0.0008 in) (HP-GL/2 addressable)
Guaranteed minimum line width – 0.085 mm (0.0033 in) (ISO/IEC 13660:2001(E))10
Line accuracy – ±0.1%11

Print Speed
Maximum print speed – 23 m/min (75 ft/min)
A1/Arch D/ANSI D (long edge first) – 30 pages/min, 1500 pages/hr
A0/Arch E/ANSI E (short edge first) – 18 pages/min, 800 pages/hr
ISO B1 (long edge first) – 24 pages/min
ISO B0 (short edge first) – 15 pages/min
A0 NTP media (short edge first) – 6 pages/min, 250 pages/hr
A1 NTP media (long edge first) – 12 pages/min
Warm-up time – No warm up, except for natural tracing paper (3 min)

Media
Media rolls – 2 rolls default with auto-switching, expandable to 6 rolls
Roll width – 279 to 1016 mm (11 to 40 in)
Roll length – Up to 200 m (650 ft)
Roll diameter – Up to 177 mm (7 in)
Roll core diameter – 7.6 cm (3 in)
Printable width – Up to 1000 mm (39.4 in)
Printable length – Up to 200 m (650 ft) for CAD and 30 m (98 ft) for poster14
Media weight – 70 to 200 g/m² (19 to 53 lb)
Media thickness – Up to 15.7 mil
Media types – Bond and recycled papers, Tyvek® papers, poster papers,
polypropylene, matte film, natural tracing papers
Media output (standard) – Basket
Media output (optional) – High-capacity stacker, online folder, top stacker

Embedded Controller
Processor – Intel Core i5
Memory – 16 GB DDR4
Hard drive – 1x 128 GB SSD; 1x 500 GB HDD, self-encrypted with AES-256
Print languages (standard) – HP-GL/2, PCL 3 Win
Print languages (optional) – Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG (with PS/PDF upgrade)
Remote management – HP Partner Link, HP Embedded Web Server, HP Web Jetadmin

Connectivity
Interfaces  – TCP/IP, BootP/DHCP, USB 2.0 host (certified)
Printing paths – HP SmartStream software (optional) HP Universal Print Driver (HP-GL/2 and PS) HP PageWide XL print drivers (PDF, HP-GL/2, and PS)

Dimensions
Printer – 77 x 30.9 x 64.4 in
High-capacity stacker: 77 x 80.3 x 64.4 in
Shipping – 88.9 x 40.9 x 62.1 in

Printer Weight
Printer – 578 kg
Shipping – 737 kg
High-capacity Stacker – 308 lb (140 kg)

Power
Consumption – 0.59 kW (typical); 2.2 kW (max printing); 108.4 watts (ready); < 1 watts (< 4.6 watts with embedded Digital Front End) (sleep)
Requirements – Input voltage (auto ranging) 200-240 V (±10%), 50/60 Hz (±3 Hz), 13 A
